Model TG54 Bimetal thermometer
19 November 2024
View 1 View

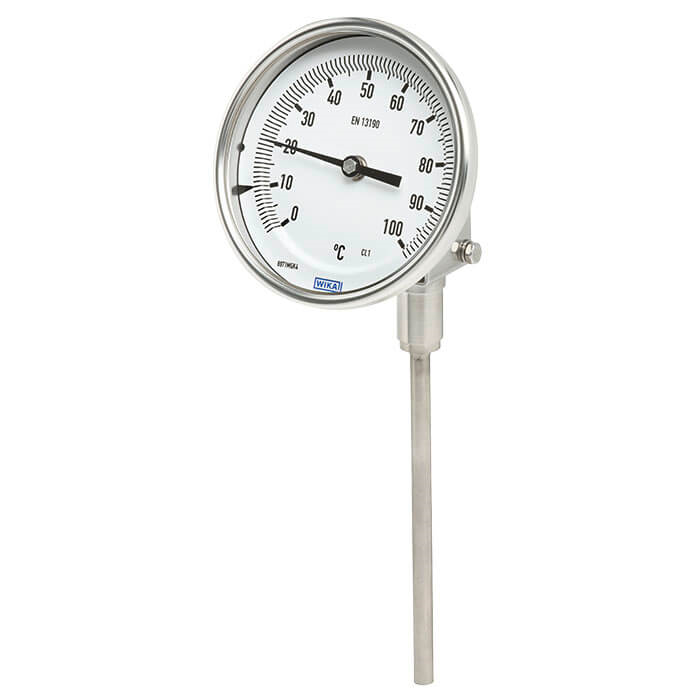

Model TG54
Bimetal thermometer
Process version per EN 13190
Applications
- General process instrumentation in the chemical and petrochemical industries, oil and gas industries, power generation and water/wastewater industries
- Temperature measurement in harsh and aggressive environments
- Suitable for applications with high vibrations
Special features
- Nominal sizes 63, 80, 100, 160 mm [2.5, 3, 4, 6"]
- Robust, hermetically sealed case
- External reset for setting the reference temperature
- Dished dial (anti-parallax) for ease of reading
- Adjustable stem and dial version enables optimal process connection
Description
The model TG54 bimetal thermometer has been developed and is manufactured in accordance with the EN 13190 standard. The thermometer meets the high requirements of the process industries.
Especially in the chemical and petrochemical, oil and gas, power engineering and shipbuilding industries, the temperature measuring instrument manufactured from stainless steel is used successfully. The robust, hermetically sealed case with IP65 ingress protection enables use with harsh external conditions and high vibration.
With a count of four different nominal sizes, an optimal matching to the available space and mounting conditions is possible.
At an easily accessible point on the back of the case, the zero point can be easily corrected.
The model TG54 meets the high requirements for resistance against aggressive media. As an option, the case, the stem and the process connection can be made from 316L.
