Models 910.19, 910.20, 910.23
Accessories for diaphragm seals
Block flange and saddle flange
Applications

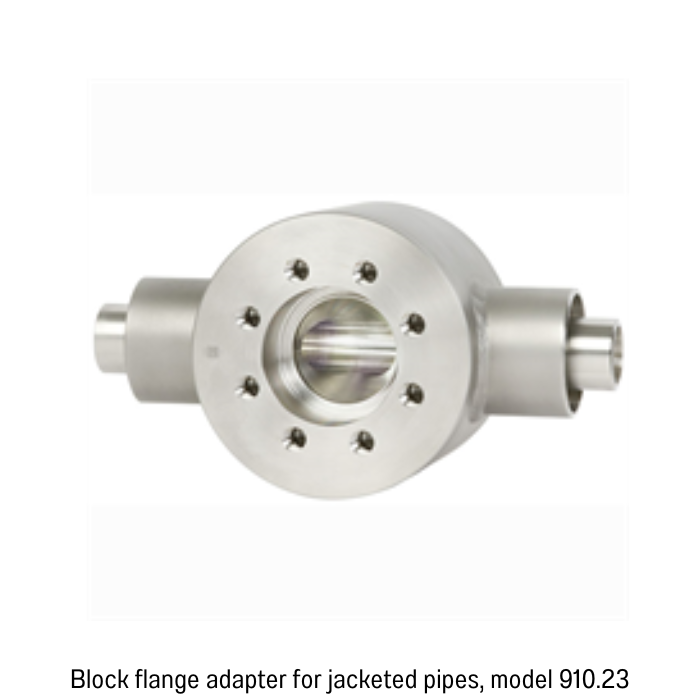

- For welding into the product line or heating line for establishing a measuring point connection (block flange)
- For welding onto the process line for establishing a measuring point connection (saddle flange)
- Process industry
- Petrochemical industry
Special Features
- For welding into pipes DN 15 ... DN 80 (block flange)
- For welding onto pipes DN 65 ... DN 150 or DN 2 ½" ... 6" (saddle flange)
- For diaphragm seal model 990.15
Description
Depending on customer requirements, the model 990.15 can be subsequently integrated into a process by means of the accessory models 910.19, 910.20 and 910.23.
A safe measuring result for smaller pipe diameters can be guaranteed by connecting the diaphragm seal via a block flange.

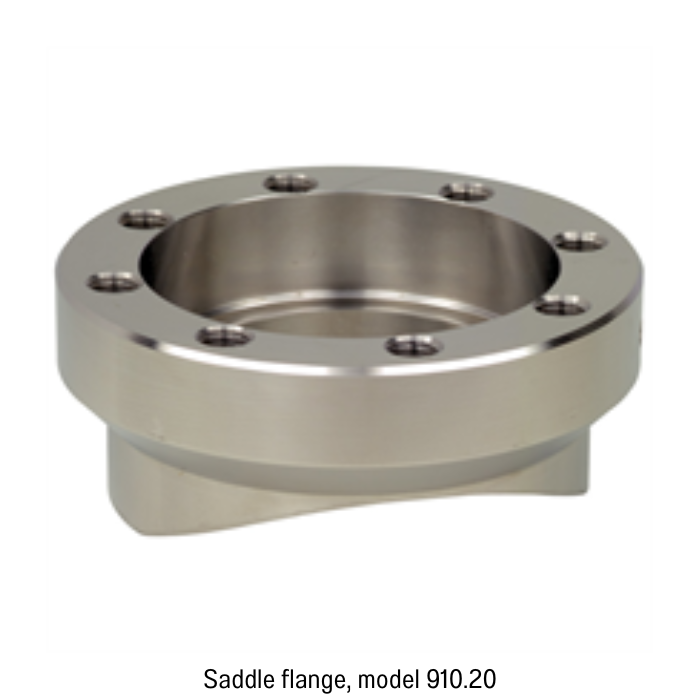

Saddle flanges enable the integration of a measuring point into pipelines from a nominal width of DN 65 (2 1/2").
