PATON 150 Leakage Tester
21 August 2024
View 27 View
Description

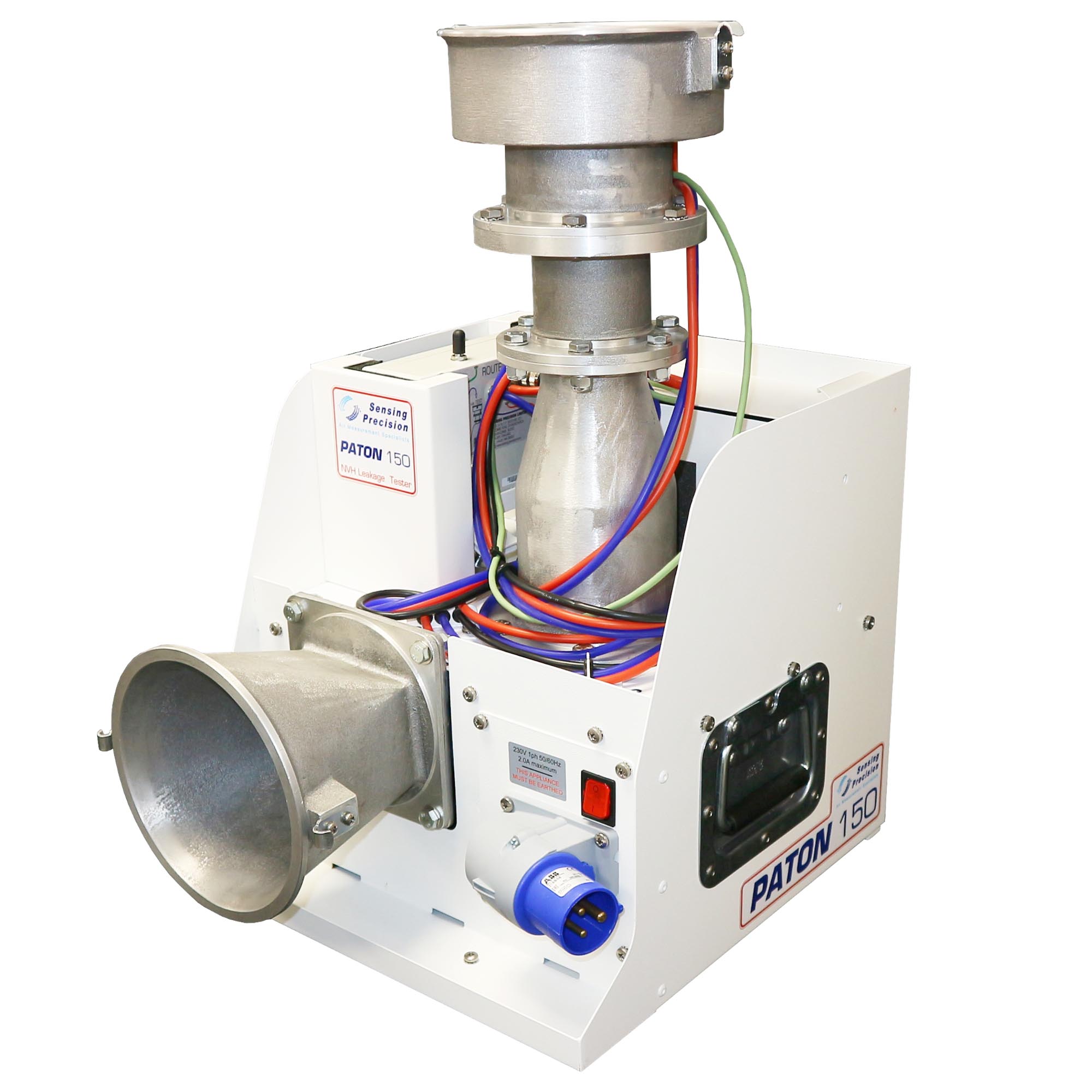

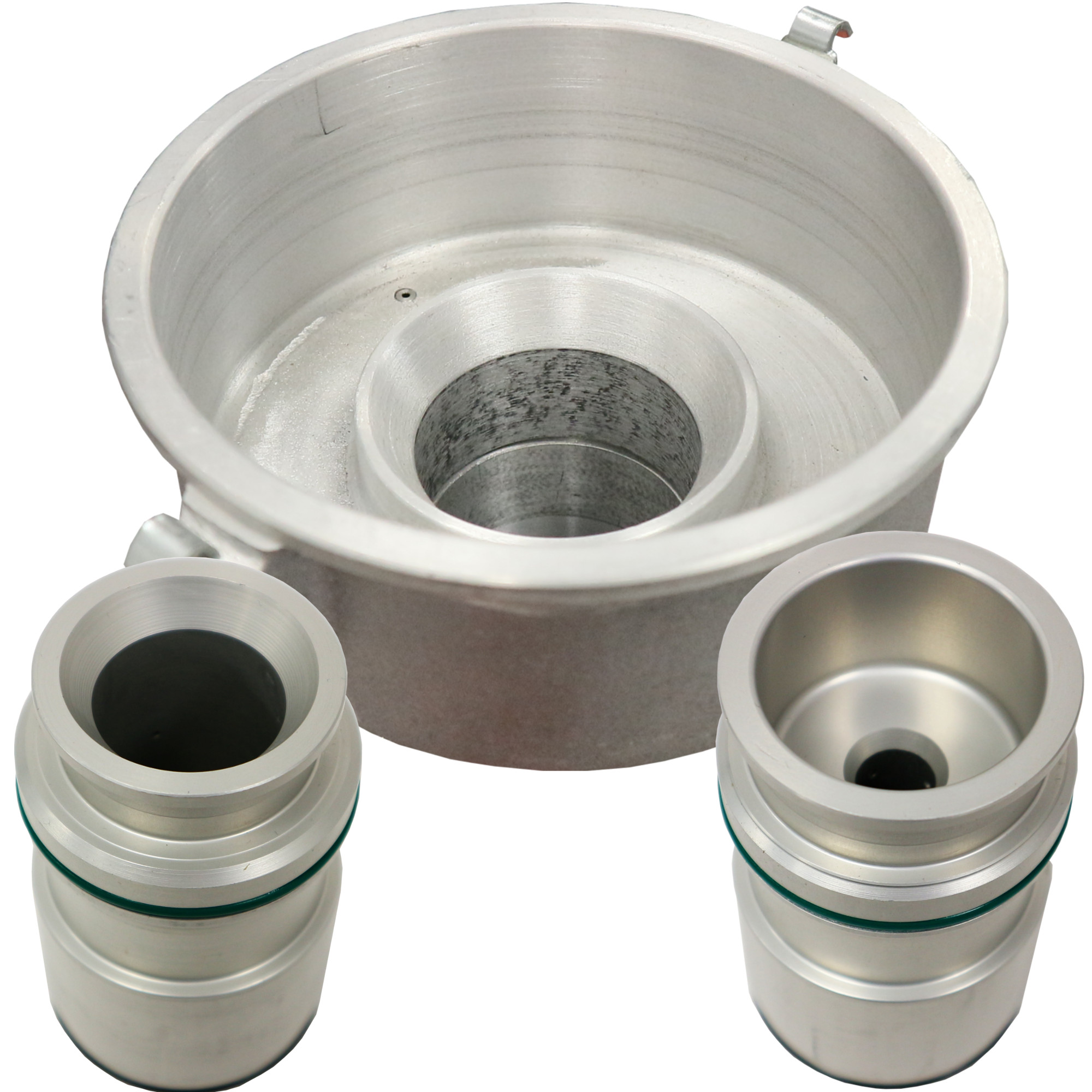

The PATON 150 Leakage Tester allows engineers to test the leakage performance of a vehicles’ cabin. It works by pressurizing, or depressurizing, the vehicles’ cabin to a specified test pressure, and measuring the air volume flow generated to produce a leakage rate, or ‘equivalent body hole size’ (EBHS) testing. The PATON 150, like all our leakage testers, utilises three rapid change (push in – pull out) conical inlet nozzles, making this machine a primary measuring device. What sets the PATON 150 apart from the PATON 350 and PATON 500 is it’s size. It’s far more compact and lightweight making it easily transportable.
The PATON 150 Leakage Tester can be used in a manual test mode where the engineer manually controls the fan speed, or it can be used in PID Closed Loop Control mode and the machine will automatically adjust the fan speed during a test to maintain a set test pressure. Test data can be saved to an SD card and can be streamed over USB connection to a computer. The PATON 150 can generate up to a maximum 150l/s of airflow.
Additional Information
– Lighter & more compact than the PATON 350 & PATON 500
– Uses new improved electronic instrument & software
– Instrument displays static pressure, flow / velocity, fan speed & more
– Option to save data to SD card or stream via USB
– Lighter & more efficient EC fan
– Available in 240V & 110V versions
– Maximum recommended SD Card – 32GB SDHC Class 1
Specification
| Volume Flow Measurement | 1 l/s to 150 l/s Over Nozzle Ranges |
|---|---|
| Pressure Measurement Range |
± 2500 Pa |
| Typical Duty Point |
70 l/s at 2000Pa 140 l/s at 500Pa |

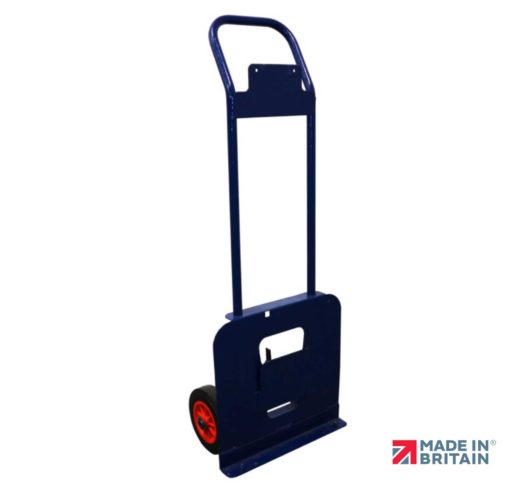

| Pressure Measurement Accuracy | ±0.50% of reading ±1 Pa |
| Leakage Flow Accuracy | ± 2.00% of reading ±1 l/s |
| Resolution | 1Pa |
| Sensor Damping | Automatic |
| Power | 400W |
| Voltage | 240Vac 50/60Hz (or 110Vac 50/60Hz available) |
| Unit Size | 35W x 46D x 62H (cm) |
| Unit Weight | 20kg |
| Carry Case (c/w Accessories) Size | 45W x 45D x 55H (cm) |
| Carry Case (c/w Accessories) Weight | 38W x 20D x 94H (cm) |
| Clip on Trolley Size | 38W x 20D x 94H (cm) |
| Clip on Trolley Weight | 6.7kg |
| Maximum recommended SD Card | 32GB SDHC Class 1 |
| Optimum Operational Temp | 16 – 24 Celsius |
| Operational Temperatures | 0 – 50 Celsius |
| Storage Temperatures | -10 – 60 Celsius |
Application
– Equivalent body hole size testing
– Enclosure testing
– Outlet testing
– AHU and chilled beam testing
