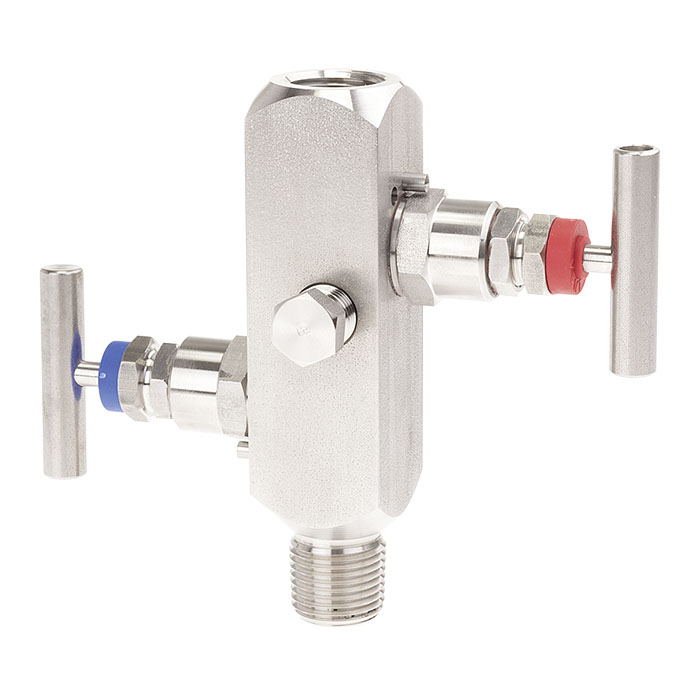

Models IV2 Block-and-bleed valve
2-valve manifold
(Data Sheet)
Applications of the block-and-bleed valve
- Shut off and vent pressure measuring instruments
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Process industry: Oil & gas, petrochemical, chemical industries, power generation, water and wastewater
Special features of the block-and-bleed valve
- Low-wear design due to non-rotating spindle tip in the bonnet
- Low torque and smooth operation of valve handle even at high pressure
- Enhanced safety due to blow-out proof bonnet design
- Valve seat tested for leak tightness per BS6755 / ISO 5208 leak rate A
- Customer-specific combination of valves and instruments (hook-up) on request
Description of the block-and-bleed valve
With 2-valve manifolds, the block-and-bleed version is standard. The shut-off valve of the separates the process from measuring instruments such as pressure gauges, switches or transmitters. By closing this valve the instrument can be safely dismounted for services like recalibration or replacement. The vent valve allows the safe venting of the instrument, prior to the dismounting or for zero point check.
Through the non-rotating spindle tip of the block-and-bleed valve, the wear of the sealing elements is reduced. This results, particularly with frequent opening and closing, in a noticeable increase in the service life.
Through the blow-out proof design of the block-and-bleed valve, working safety is improved, especially in applications with high pressure loading.
As an option, WIKA offers the professional assembly of valves and pressure measuring instruments and also other accessories into a ready-to-install solution, also known as a hook-up. To ensure the performance of the complete system, an additional leak test is carried out on the hook-up.
